Datos del producto:
|
| Echada: | 3.96m m | Resistencia de contacto (máxima): | los 20M Ohm |
|---|---|---|---|
| Grado actual: | 7Amp | Proceso de temperatura: | 260±5℃ por 10 segundos |
| Temperatura de funcionamiento: | -40~105℃ | Resistencia de aislamiento (minuto): | el 1000M Ohm |
| Alta luz: | conector femenino del jefe de 3.96m m,conector femenino del jefe 4Alfiler,jefe femenino de la sola fila de 3.96m m |
||

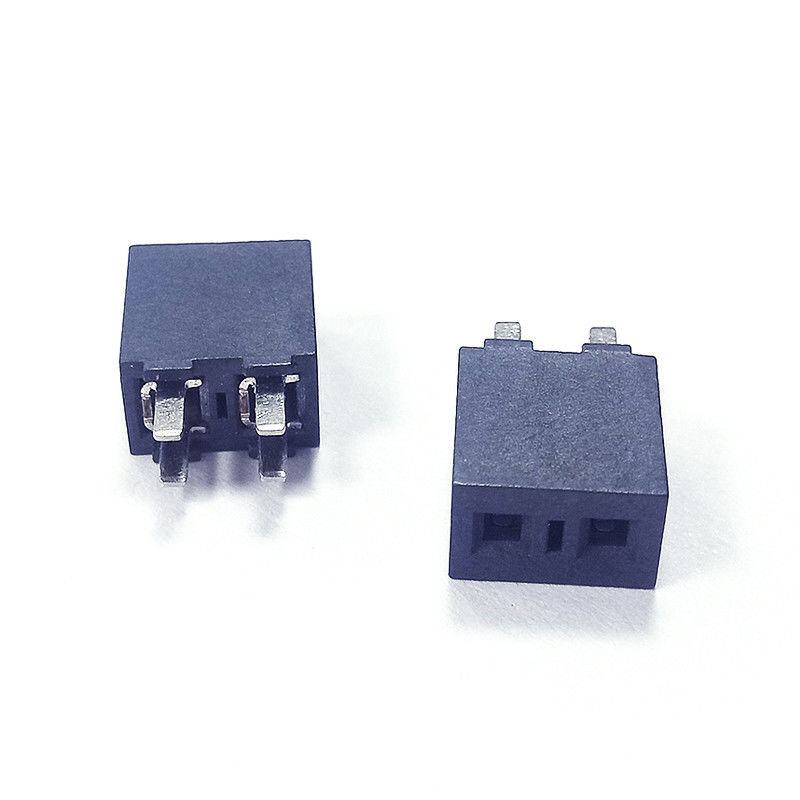

3.96mm pitch Female Header Connector Single Row Straight DIP
A female header is a socket header connector with metal contacts, which are inserted into a plastic base. They are typically mated with pin header connectors providing a reliable and economical board-to-board connection.
Product Application
It widely used in electronics, electrical appliances, instruments in the general connection of the main components of the current or signal transmission. Usually with the needle supporting the use of a board to board connection. The utility model is matched with an electronic wiring harness terminal to form a board to wire connection.
Specification
| Products Name | Female Header/PCB Connector |
| Pitch | 3.96mm |
| Current Rating | 7.0 AMP |
| Contact Resistance | 20 mΩ Max |
| Withstand Voltage | AC 1000V |
| Insulation Resistance | 1000 MΩ Min |
| Operation Temperature | -40℃ to 105℃ |
| Contact Material | Coppy Alloy |
| Contact Plating | Au or Sn Over Ni |
| Insulator Material | PA6T+30 GF(UL94-V0) |
| Mounting Type | Through Hole |
| Termination | Solder |
| Number of Row | Dual |
| Plastic Height | 8.8mm |
| Contact Finish | Gold Flash |
| Pins available | 4 Pins to 40 Pins |
| Color | Black |
| Packaging | Tube |
Drawing
What's the Female Header
1,Female header is called PCB Connector. Based on different designs for PCB, they choose different pitch connectors for signal transmission;
2,0.8mm/1.0mm/1.27mm/2.00mm/2.54mm pitch pin header are featured products in our company. If you need special pin header that standard pitch couldn't satisfy, e-mail or call our sales team;
3,Generally, Female headers with suited pin headers are used to finish created modules in electronic industry;
4,Regarding Female header electrical and mechanical properties, same pitch has the same function, which we have shown clearly in our data sheet;
5,Another common variation on pin header is called "machine pin" version. The normal version is formed out of stamped and folded sheet metal, machine pin connectors are formed by tooling the metal into the desired shape, which is a more robust, with a better joint and longer life, making it more expensive though. Still more and more automotive and medical industry customers choose machine pin to improve connection stability.
Payment term and delivery
1. MOQ:500pcs.
2. Trade Terms: FOB Shenzhen or EXW.
3. Payment term: 100% T/T in advance before production.
4. Payment way: T/T, Paypal or others method.
5. Samples: Samples is avaliable to check the quanltiy & specification,and it is free for 1-30 pcs.
6. Delivery Time: 3-15 working days after order confirmed and the payment received.
7. Shipping method: UPS, DHL, FEDEX,EMS& Air transportation& Sea transportation.
8. Packing: Inside:PE bag,Tray, Tube,Box,Tape+Reel . Outside: export carton
